Free-Flooded Rings (FFRs) Model PyFFR-8-16

Free-Flooded Rings (FFRs) Model PyFFR-8-16

This transducer is based on the standard Free-Flooded Ring technology. It presents several advantages: broadband (typically 1 octave), unlimited immersion depth, and toroidal to omnidirectional directivity. The transducers are ideal for use in a range of applications such as underwater communication, telemetry and acoustic positioning.

Miniature
Miniature
Get the complete datasheet Flèche vers le bas Flèche vers le bas

Characteristics

Electroacoustics
Frequency range 8 kHz to 16 kHz Transmit sensitivity 130 dB re. μPa/V @1m Receive sensitivity -173 dB re. V/μPa Max Transmit voltage (RMS) 500 Vrms Capacitance at 10Hz (without cable) 9 nF

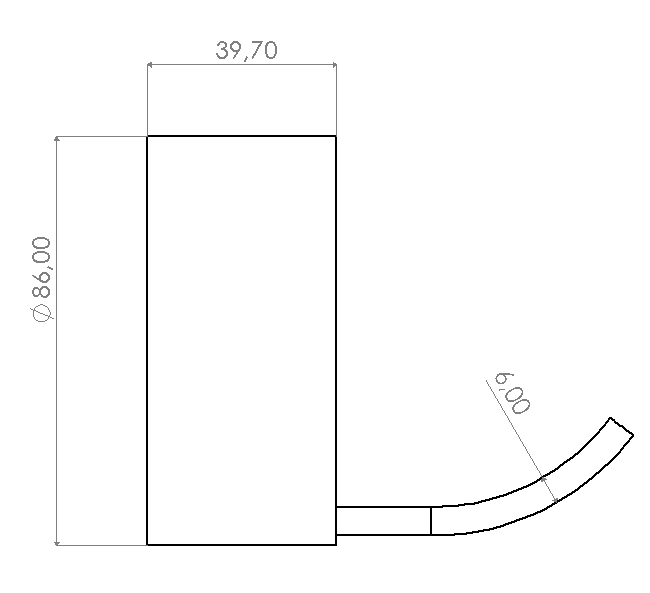

Mechanical Specification
Weight in air 0.9 kg Weight in sea water 0.89 kg Interface Cable and connector on demand
Environment
Depth capability 6000 m Operating temperature -5 to +40°C Storage temperature -40 to +80°C
Typical uses
Underwater communication Underwater positioning Telemetry Pinger

Specifications can change without notice for redesign purposes, data are not contractual.
