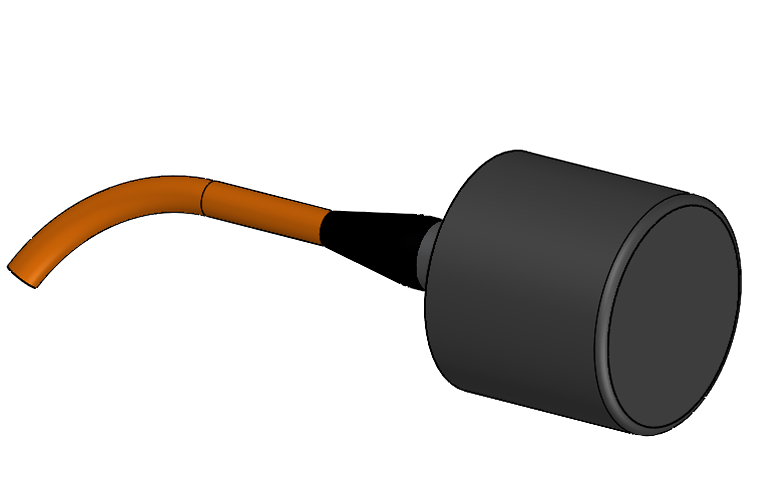

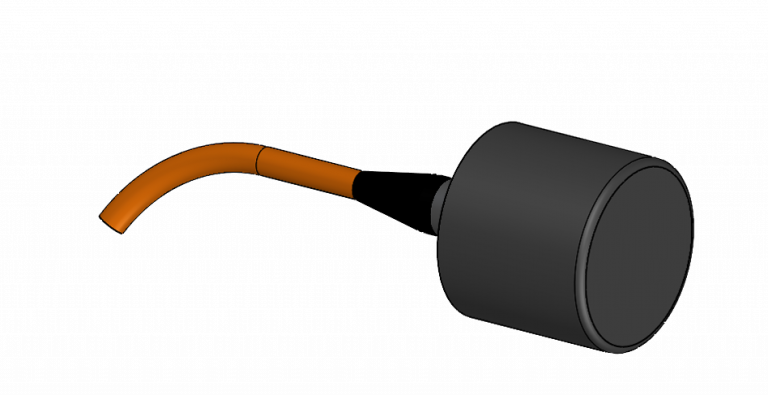

Free-Flooded Ring (FFRs) Model PyFFR-16-32-Oil
Free-Flooded Ring (FFRs) Model PyFFR-16-32-Oil
This transducer is based on the standard Free-Flooded Ring technology. It presents several advantages: broadband (typically 1 octave), unlimited immersion depth, and hemispherical directivity. The transducers are ideal for use in a range of applications such as underwater communication, telemetry and acoustic positioning.
Characteristics
Electroacoustics
Frequency range
16 kHz - 32 kHz
Transmit sensitivity
130 dB re. μPa/V @1m
Maximum SPL
192 dB re. 1 µPa @ 1m
Receive sensitivity
-182 dB re. V/μPa
Max Transmit voltage at 10% Duty Cycle
1250 Vrms
Transmit voltage at 100% Duty Cycle
1250 Vrms
Capacitance at 10Hz (without cable)
5,6 nF

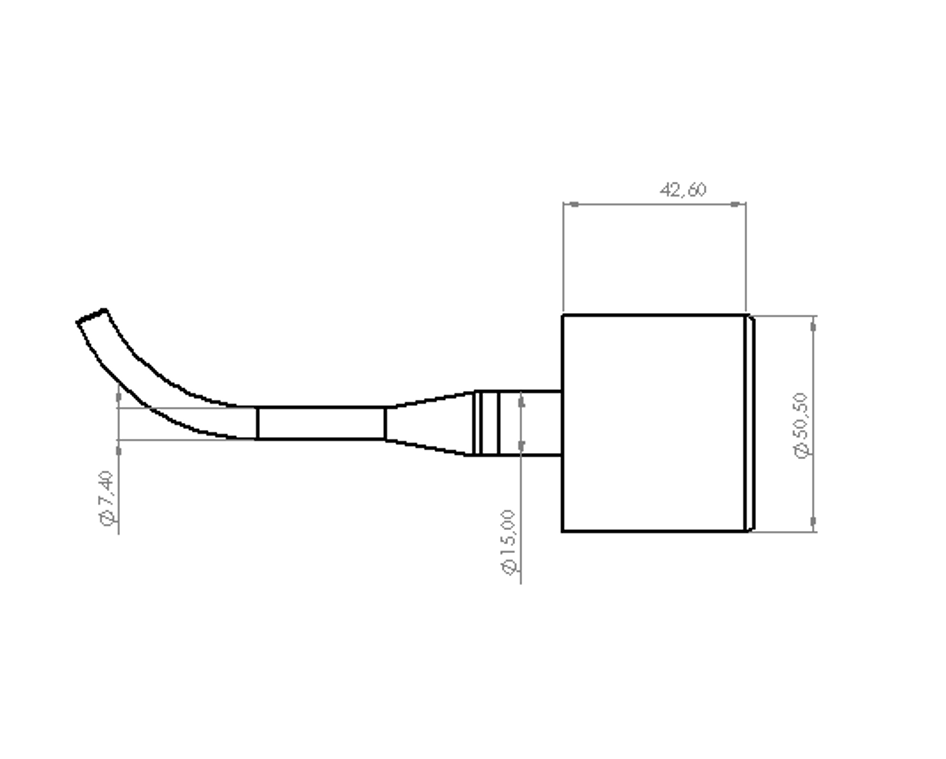

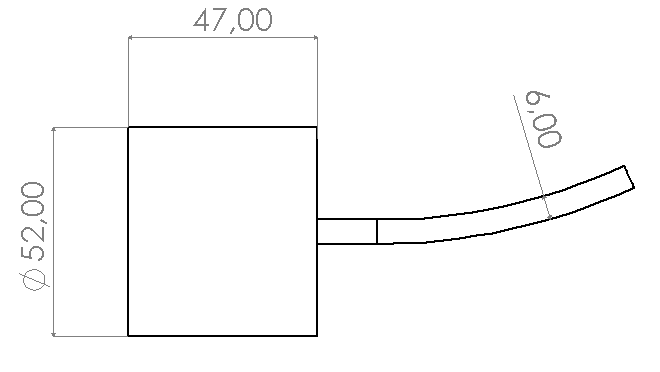

Mechanical Specification
Weight in air
0.28 kg
Weight in sea water
0.18 kg
Interface
Cable and connector on demand
Environnement
Depth capability
6000 m
Operating temperature
-5 to +40°C
Storage temperature
-40 to +80°C
Usages types
Depth capability
6000 m
Cavitation depth at 192 dB re. µPa @ 1m
30 m
Operating temperature
-5 to +40°C
Storage temperature
-40 to +80°C
Specifications can change without notice for redesign purposes, data are not contractual.
