Hydrophones Model PyH-22

Hydrophones Model PyH-22

This hydrophone is extremely sensitive and robust to accelerations. It is perfectly suited for integration into a linear streamer type antenna. It resists immersions of 6000m and can reside submerged for very long periods.
It is particularly suitable for seismic applications, anti-submarine warfare or marine mammals observation.

Miniature
Miniature
Get the complete datasheet Flèche vers le bas Flèche vers le bas

Characteristics

Electroacoustics
Frequency range 5 Hz - 15 kHz Transmit sensitivity 135 dB re. μPa/V @1m Receive sensitivity -195 dB re. V/μPa Capacitance at 10Hz (without cable) 2.75 nF

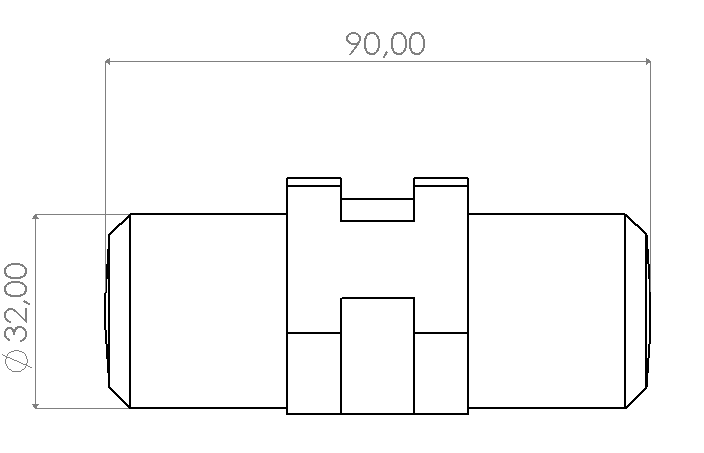

Mechanical Specification
Weight in air 255 g Weight in sea water 174 g Interface Cable and connector on demand
Environnement
Depth capability 900 m * * optional 6000 m - may require an export licence Operating temperature -5 to +40°C Storage temperature -40 to +80°C
Usages types
Seismic streamer ASW streamer Marine mammals Ocean observation

Specifications can change without notice for redesign purposes, data are not contractual.
