Tonpilz Projectors Model PyT-2000
Tonpilz Projectors Model PyT-2000
This TONPILZ Type transducer is the state-of-the art 3.5kHz hull-mounted transducer. It allows full water-column range plus sediment penetration. It is the perfect transducer for hull-mounted subbottom profiler. It can also be integrated in an array for long range active sonar.
Characteristics
Electroacoustics
Frequency range
1.9 kHz to 5.3 kHz
Transmit sensitivity
144 dB re. μPa/V @1m
Maximum SPL
200 dB re. 1µPa @1m
Receive sensitivity
-135 dB re. V/μPa
Max Transmit voltage at 10% Duty Cycle
2100 Vrms
Transmit voltage at 100% Duty Cycle
650 Vrms
Capacitance at 10Hz (without cable)
62 nF

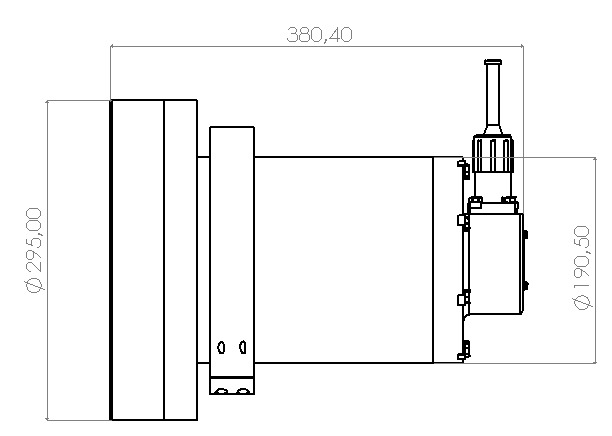

Mechanical Specification
Weight in air
45,6 kg
Weight in sea water
32,0 kg
Interface
Cable and connector on demand
Environment
Depth capability
20 m
Cavitation depth at 200 dB re. µPa 1m
0 m
Operating temperature
-5 to +40°C
Storage temperature
-40 to +80°C
Usages types
Low-frequency echo sounding
High-resolution background profiler
Active sonar mounted on the hull
Specifications can change without notice for redesign purposes, data are not contractual.
